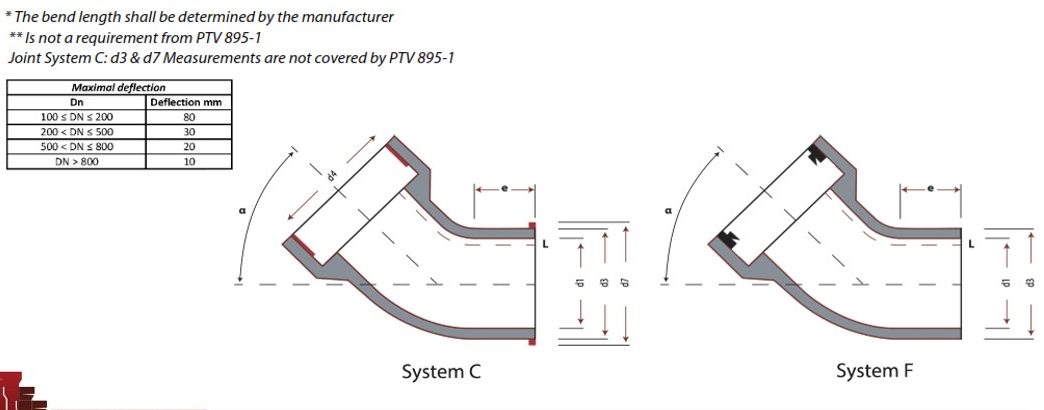

| Nominal size DN (MM) | Joint (-) | Angle a ± Tolerance ( Grad ) | Strength class TKL ( -) | INNER ø d1 ± Tolerance ( mm ) | OUTER ø d3 ± Tolerance ( mm ) | Socket inner ø d4 ± Tolerance ( mm ) | Joint spigot outer ø d7 ± Tolerance ( mm ) | Measurement emin ( mm) | Length L (MM) | WEIGHT ** (KG/PCS) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 125 | F | 15° ± 3° | - | 126 ± 4 | 159 ± 2 | - | - | 70 | 250 ± 25 | 8 | |
| 125 | F | 30° ± 4° | - | 126 ± 4 | 159 ± 2 | - | - | 70 | 250 ± 25 | 8 | |
| 125 | F | 45° ± 5° | - | 126 ± 4 | 159 ± 2 | - | - | 70 | 250 ± 25 | 8 | |
| 125 | F | 90° ± 5° | - | 126 ± 4 | 159 ± 2 | - | - | 70 | * | 9 | |
| 150 | F | 15° ± 3° | - | 151 ± 5 | 186 ± 2 | - | - | 75 | 260 ± 25 | 9 | |
| 150 | F | 30° ± 4° | - | 151 ± 5 | 186 ± 2 | - | - | 75 | 260 ± 25 | 10 | |
| 150 | F | 45° ± 5° | - | 151 ± 5 | 186 ± 2 | - | - | 75 | 260 ± 25 | 10 | |
| 150 | F | 60° ± 5° | - | 151 ± 5 | 186 ± 2 | - | - | 75 | * | 10 | |
| 150 | F | 90 ± 5° | - | 151 ± 5 | 186 ± 2 | - | - | 75 | * | 11 | |
| 200 | F | 15° ± 3° | 200 / 160 | 200 ± 5 | 242 ± 3 | - | - | 85 | 270 ± 25 | 14 | |
| 200 | F | 30° ± 4° | 200 / 160 | 200 ± 5 | 242 ± 3 | - | - | 85 | 270 ± 25 | 15 | |
| 200 | F | 45° ± 5° | 200 / 160 | 200 ± 5 | 242 ± 3 | - | - | 85 | 270 ± 25 | 17 | |
| 200 | F | 90° ± 5° | 200 / 160 | 200 ± 5 | 242 ± 3 | - | - | 85 | * | 20 | |
| 200 | C | 15° ± 3° | 200 / 160 | 200 ± 5 | 242 ± 5 | 260 ± 0.5 | 263 ± 0.5 | 85 | 270 ± 25 | 14 | |
| 200 | C | 30° ± 4° | 200 / 160 | 200 ± 5 | 242 ± 5 | 260 ± 0.5 | 263 ± 0.5 | 85 | 270 ± 25 | 15 | |
| 200 | C | 45° ± 5° | 200 / 160 | 200 ± 5 | 242 ± 5 | 260 ± 0.5 | 263 ± 0.5 | 85 | 270 ± 25 | 17 | |
| 200 | C | 90° ± 5° | 200 / 160 | 200 ± 5 | 242 ± 5 | 260 ± 0.5 | 263 ± 0.5 | 85 | * | 20 | |
| 250 | C | 15° ± 3° | 160 | 250 ± 6 | 299 ± 6 | 317.5 ± 0.5 | 320.5 ± 0.5 | 85 | 350 ± 25 | 24 | |
| 250 | C | 30° ± 4° | 160 | 250 ± 6 | 299 ± 6 | 317.5 ± 0.5 | 320.5 ± 0.5 | 85 | 350 ± 25 | 25 | |
| 250 | C | 45° ± 5° | 160 | 250 ± 6 | 299 ± 6 | 317.5 ± 0.5 | 320.5 ± 0.5 | 85 | 350 ± 25 | 27 | |
| 250 | C | 90° ± 5° | 160 | 250 ± 6 | 299 ± 6 | 317.5 ± 0.5 | 320.5 ± 0.5 | 85 | * | 31 | |
| 300 | C | 15° ± 3° | 160 | 300 ± 7 | 355 ± 7 | 371.5 ± 0.5 | 374.5 ± 0.5 | 85 | 370 ± 30 | 34 | |
| 300 | C | 30° ± 4° | 160 | 300 ± 7 | 355 ± 7 | 371.5 ± 0.5 | 374.5 ± 0.5 | 85 | 370 ± 30 | 37 | |
| 300 | C | 45° ± 5° | 160 | 300 ± 7 | 355 ± 7 | 371.5 ± 0.5 | 374.5 ± 0.5 | 85 | 370 ± 30 | 40 | |
| 300 | C | 90° ± 5° | 160 | 300 ± 7 | 355 ± 7 | 371.5 ± 0.5 | 374.5 ± 0.5 | 85 | * | 43 |
| 200 | C | 15° ± 3° | 240 | 200 ± 5 | 254 ± 5 | 275.0 ± 0.5 | 278.4 ± 0.5 | 85 | 270 ± 25 | 24 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 200 | C | 30° ± 4° | 240 | 200 ± 5 | 254 ± 5 | 275.0 ± 0.5 | 278.4 ± 0.5 | 85 | 270 ± 25 | 25 | |
| 200 | C | 45° ± 5° | 240 | 200 ± 5 | 254 ± 5 | 275.0 ± 0.5 | 278.4 ± 0.5 | 85 | 270 ± 25 | 28 | |
| 200 | C | 90° ± 5° | 240 | 200 ± 5 | 254 ± 5 | 275.0 ± 0.5 | 278.4 ± 0.5 | 85 | * | 32 | |
| 250 | C | 15° ± 3° | 240 | 250 ± 6 | 318 ± 6 | 341.5 ± 0.5 | 344.9 ± 0.5 | 85 | 350 ± 25 | 39 | |
| 250 | C | 30° ± 4° | 240 | 250 ± 6 | 318 ± 6 | 341.5 ± 0.5 | 344.9 ± 0.5 | 85 | 350 ± 25 | 41 | |
| 250 | C | 45° ± 5° | 240 | 250 ± 6 | 318 ± 6 | 341.5 ± 0.5 | 344.9 ± 0.5 | 85 | 350 ± 25 | 45 | |
| 300 | C | 15° ± 3° | 240 | 300 ± 7 | 376 ± 7 | 398.5 ± 0.5 | 401.9 ± 0.5 | 85 | 370 ± 30 | 51 | |
| 300 | C | 30° ± 4° | 240 | 300 ± 7 | 376 ± 7 | 398.5 ± 0.5 | 401.9 ± 0.5 | 85 | 370 ± 30 | 53 | |
| 300 | C | 45° ± 5° | 240 | 300 ± 7 | 376 ± 7 | 398.5 ± 0.5 | 401.9 ± 0.5 | 85 | 370 ± 30 | 57 |
